Double Miter Saw for Aluminum and PVC Profile SJ02-3500
Structure feature: |

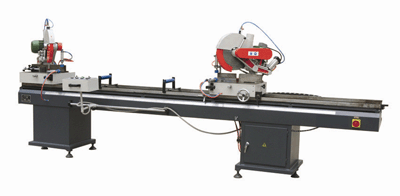

The machine is made up of saw heads, working table, machine frame, etc. Air pressure drives feeding and pressing, and the speed can be adjusted. It features swinging feeding and high cutting precision. There are movable shields on the saw heads. The working table moves agility, and can be locked in the location what do you need. |
|
Function explanation: |
The machine is used for 45¡ã¡«90¡ãcutting processing of aluminum and PVC profile with single or double saw heads. It features high efficiency and flexible operation and is the necessary equipment for PVC door processing. |
|
Technical parameter: |
Working air pressure£º |
0.4¡«0.6MPa |
Air consumption£º |
A100 L/min |
Input voltage£º |
380V 50Hz£¨3-phrase 4-thread£© |
Input power£º |
3.0 KW |
Saw blade speed£º |
3467 m/min |
Max cutting width£º |
200mm |
Max cutting height£º |
100mm |
Double saw head cutting length£º |
450 ~3500mm |
Dimension£º |
4000¡Á1120¡Á1500mm |
Weight£º |
650 kg |
Remark£ºMax cutting height and max cutting width can't be realized at the same time. |
|
|
