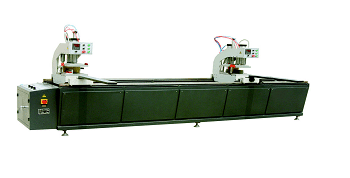

PVC Win-Door 2-head Welding Machine HJ02-35002/2A
| Structure feature: |
| This machine is made up of two heads, frame, electric controller box, profile-holding frame, etc. The left head can move 20mm by following the track. Every head has their separate location structure, pressing structure, heating structure and head box. |
|
| Function explanation: |
| This machine is one of the necessary equipment for processing PVC Window and Door. It can complete the whole welding alone. It features advanced technique, pneumatic drive, PC control, stable capability and simple operation. The CM non-oil lubricating bearing and liner moving bearing make high precision and convenient maintaining. The machine has one head that can weld various angles. The two heads can work individually and jointly. It enables welding for such shapes as ש etc. |
|
| Technical parameter: |
| Input voltage: |
220V |
| Input frequency: |
50Hz |
| Input power: |
2.5kW |
| Working air pressure: |
0.5-0.8MPa |
| Air consumption: |
100 L/ min |
| Welding height: |
20~100mm |
| Max welding width: |
120mm |
| Welding size: |
400 ~3500mm |
| Packing Dimension: |
4500x1100x1700mm |
| Net weight: |
800kg |
| Working air pressure: |
0.40.6MPa |
|
|
